NOVEL NOT-5600 Series NOT-5600

NOVEL NOT-5600 Series

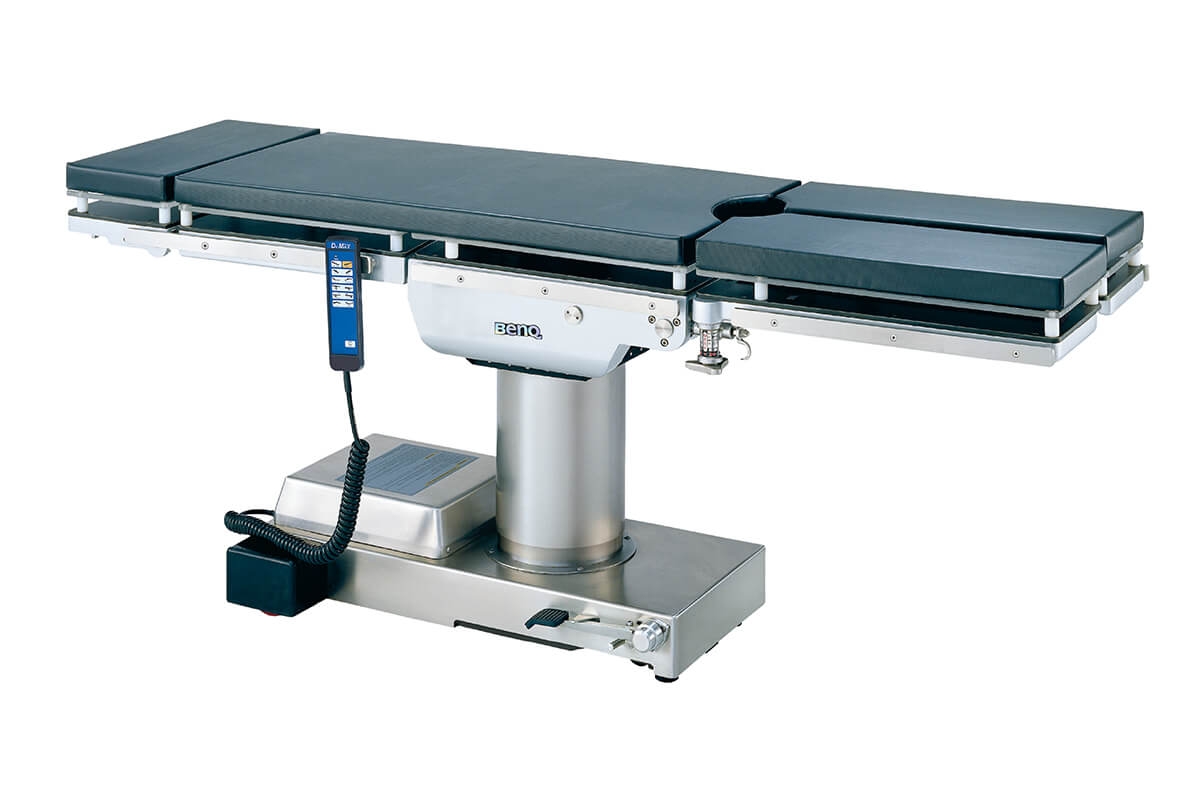

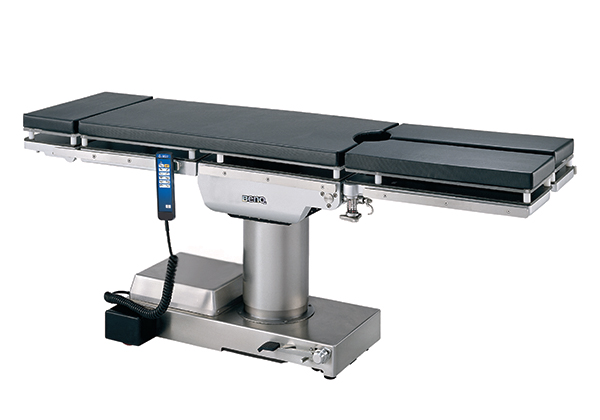

Multifunctional Electric Operating Table

NOT-5600 series at competitive price are designed for the appropriate patient positioning. It makes easier for the surgical team, C-arm, etc to access, also ensuring the safety and comfort of patients.

It also provides convenience for easy operation and quick maintenance, as well as the requirements of long-term reliability and durability. The purpose of the research and development of this operating bed is to achieve as the above.

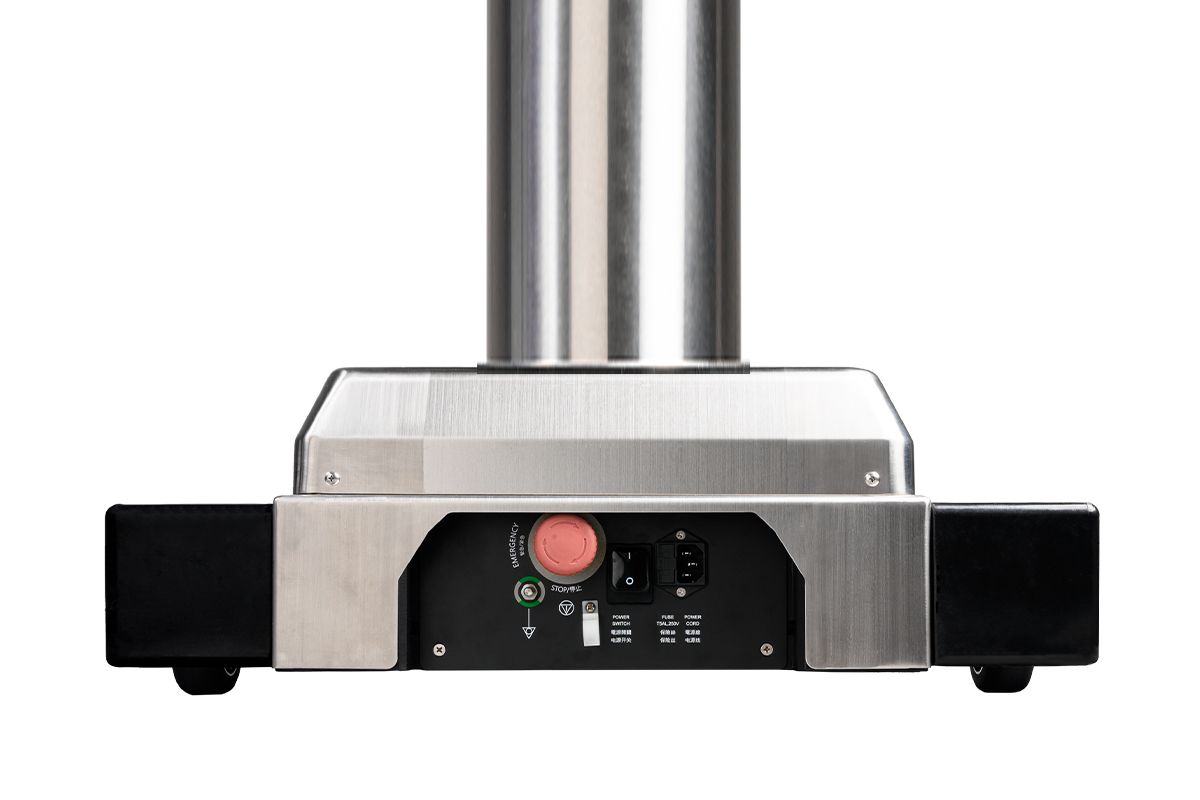

NOT-5600 series is electrically operated hydraulic power via a hand control. They also provide optional foot control and/or auxiliary control. The table base cover and shrouds of lifting column are made of stainless steel which come with advantages of Impact-resistant, anti-breakage and anti-disinfectant.

Q'ty :

Add to compare

Add to inquiry

FEATURE

Multi-functional Position Operation

The table can be adjusted by required various positionings via a hand control, foot control, or auxiliary control.

Exclusive Lengthwise and lateral Tilts of Tabletop

The table provides safe and smooth the lengthwise and lateral tilt positionings of tabletop.

Large Casters

This provides excellent mobility.

X-ray Top (Optional)

X-ray top is for insertion of x-ray cassettes as the general sizes 14"x17" and 14"x11", from either head, body side, or foot of the tabletop to provide X-ray capability.

Built-in Kidney Bridge

Built-in kidney bridge provides the operation outside of sterile field on the left or right side of the head-end which helps to avoid interference of surgical procedures and contamination of the sterile field. The kidney bridge is also X ray translucent. (Only K model equipped with this feature.)

APPLICABLE FIELD

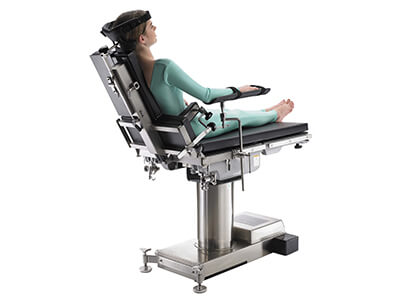

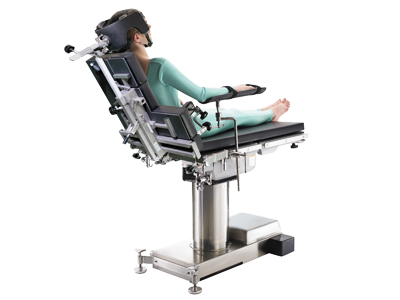

Total Shoulder / Arthroscopy Surgery

This shoulder surgery attachment is designed specifically to position patients for Should Arthroscopy Procedures and provides the best surgeon and C-arm access. The design not only uses springs as power lifting support but also lateral side mechanism for back section to position patients to make positioning operation both fast and easier for staffs.

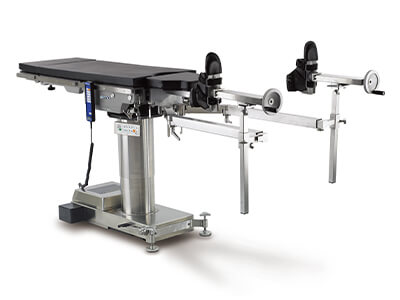

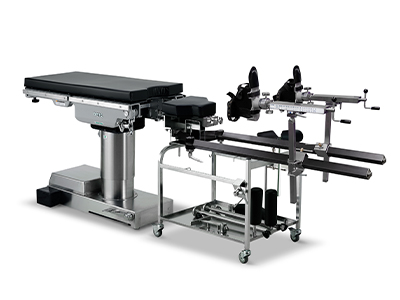

Orthopedic/Trauma Surgery Traction

This orthopedic extension device can be quickly and easily attached to the table and provide positioning flexibility and excellent stability during othopedic surgeries such as lower limb, arms, etc.

SPECIFICATIONS

Standard Specifications

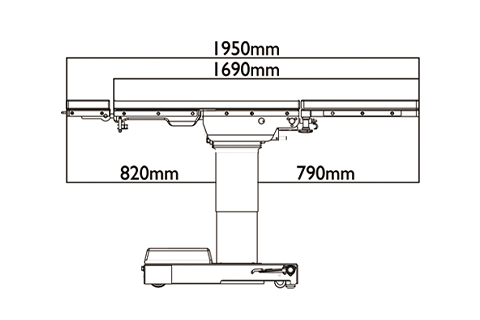

Tabletop Size	1,950 X 500

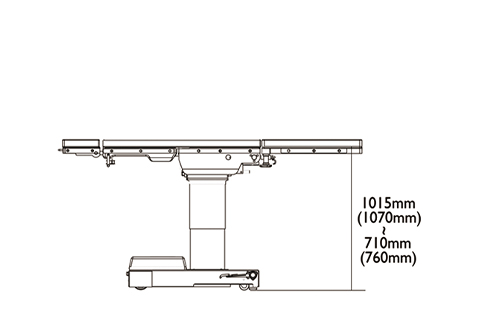

Tabletop Height	710 ~ 1,015

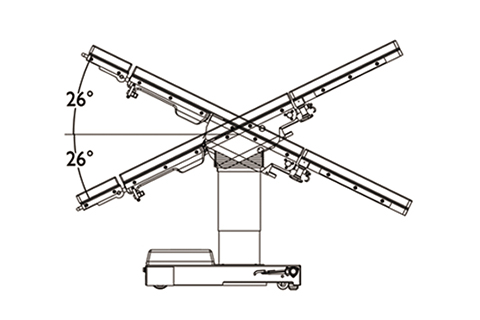

Trendelenburg/Reverse Trendelenburg	26°/26°
Lateral Tilt (L/R)	21°/21°

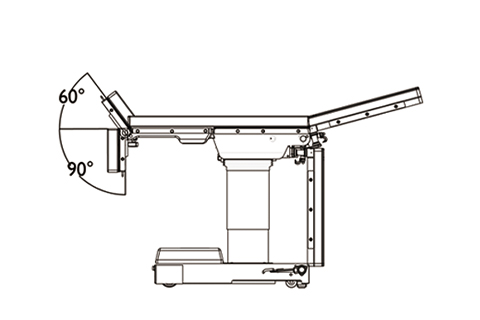

Head Rest (Up/Down)	60°/-90°

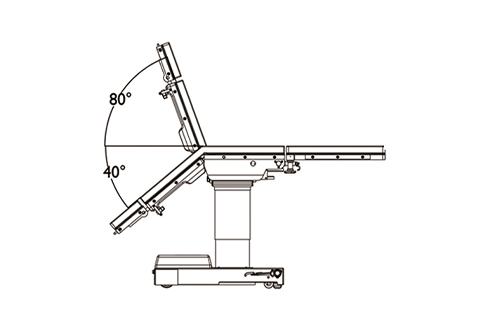

Back Plate (Up/Down)	80°/-40°
Leg Plate (Up/Down)	15°/-90°

Special specifications

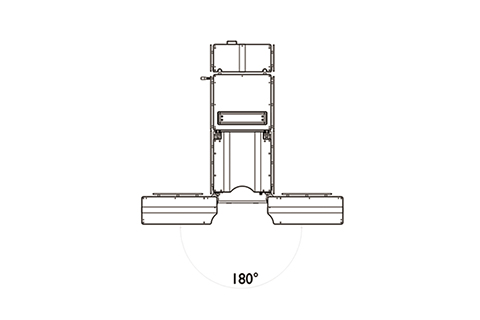

Tabletop Longitudinal Slide or Tabletop Rotation	300

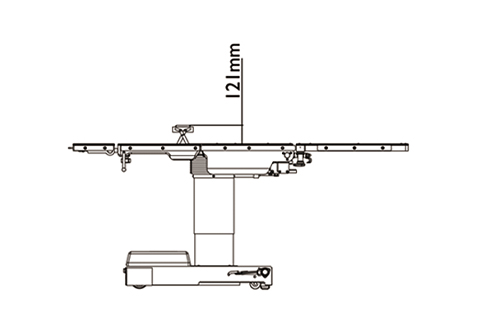

Kiidney Bridge Elevation	121

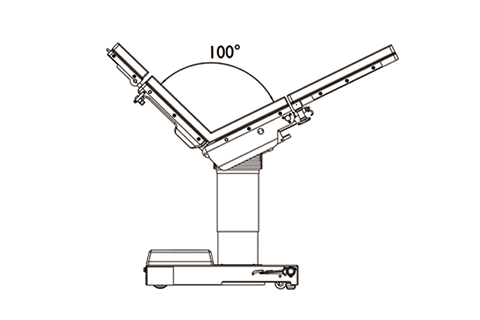

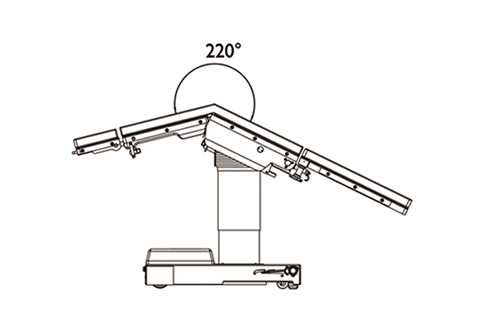

DIMENSIONS
