POSEIDON Q200 Series POSEIDON-Q200

POSEIDON Q200 Series

Powerful and Versatile tabletop Slide Operating Table

Q200 series provides comprehensive flexibility for patient positioning, no matter how difficult the procedure or imaging requirement. 530mm of tabletop slide function is more-than-enough for full body imaging. In addition, Q200 features a tabletop positioning interlock system, which identifies all tabletop positioning adjustments in any improper articulations, including tabletop slide and possible collision, in order to maximize operational efficiency and safety. In addition to ease of use, the common positioning memory function is available to facilitate work of OR team.

Q'ty :

Add to compare

Add to inquiry

FEATURE

530mm of Ultra Long Tabletop Slide

Q200 series provides 530mm of ultra long tabletop slide function for full body imaging.

Tabletop Positioning Memory Function

Q200 series provides 2 separate sets of common positioning memory function to simplify repetitive procedures to reduce surgical time and increase efficiency of OR team.

Powered Kidney Bridge

Powered kidney bridge provides a quick and easy 140mm of patient’s lumbar lifting height for X-ray imaging during kidney surgery.

Powered Removable Leg Section

Quickly removable solid leg plate allows easy, unobstructed perineal access for perineal surgery.

APPLICABLE FIELD

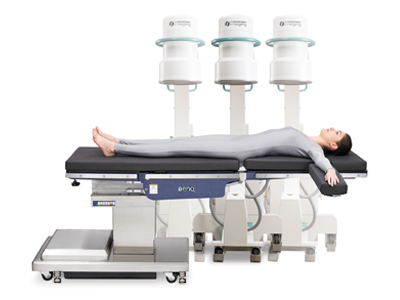

Operating Table for Wide-range of Image Photography

Q200 surgical imaging table is designed for wide-range of image photography for surgery. Q200 has a unique 530mm of ultra long tabletop slide function to facilitate optimal patient positioning and C-arm access, eliminating the need to move the patient and C-arm, including powerful 454kg tabletop slide-center lifting and 273kg tabletop articulation.

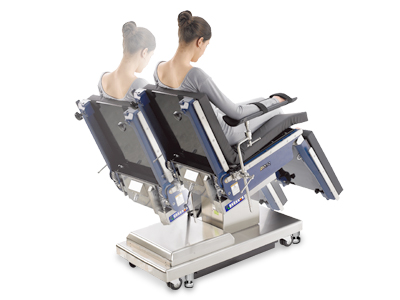

Neurosurgery for Craniotomies

Full Fowler craniotomies can easily be accomplished with tabletop slide to head-end in order to have enough leg room for a standing surgeon.

SPECIFICATIONS

Standard Specifications

Tabletop Size	2,000 X 508
Tabletop Height	685 ~ 1,135
Trendelenburg/Reverse Trendelenburg	30°/25°
Lateral Tilt (L/R)	25°/25°
Head Rest (Up/Down)	60°/-90°
Back Plate (Up/Down)	80°/-40°
Leg Plate (Up/Down)	0°/-100° (Electric)

Special specifications

Tabletop Longitudinal Slide or Tabletop Rotation	530
Kiidney Bridge Elevation	140 (Electric)
