SE26101
FEATURE
Accurate Color and Grayscale Rendering
Featuring a 14-bit 3D color lookup table, the Surgical Display makes even the slightest of color variations easily perceptible. The accurate colors provided by the 3D LUT allow surgeons to identify even minor distinctions of hue, making important details more noticeable during both routine operations and emergency surgeries.
Dual-Source Display
Surgeons can display two independent video sources side-by-side on a single monitor with Picture-By-Picture mode, or use Picture-In-Picture mode to place one source in a smaller window. Additional viewpoints allow physicians observe problem areas from multiple angles while their eyes remain focused on a single screen. And for ultimate flexibility, the display allows color temperature and gamma values to be adjusted independently for each source.
Normal nad Mirror Viewing Options
By combining a pair of Surgical Displays with a single output device, operators can present both a normal view and a mirror image. This feature can provide separate views for different surgeons or two views for a single surgeon as needed.
Multiple Customizable Profiles
Capability to hold up to 10 user profiles ensures all users can optimize their workflow, while accessible front panel buttons facilitate rapid switching between user-defined display settings.
IPX3 Water Resistance
The front panel’s IPX3-rated housing with anti-bacterial coating and scratch-resistant glass protect the internals from damage by liquids while also making cleaning and disinfection easy.
Fanless Design
The fanless design results in a lighter, more compact device that's better suited to the operating room environment, while also reducing the risk of circulating airborne pathogens.
APPLICABLE FIELD
Operation Room
Surgery and Endoscopy Centre
SPECIFICATIONS
Standard Specifications
| Type | Corlor IPS | ||
|---|---|---|---|
| Panel Size (diagonal) | 26” (66.1cm) | ||
| Native Resolution (H x V) | 1,920 X 1,080 | ||
| Viewing Angle (H,V) | 178° / 178° @ CR>10 (Typ) | ||
| Display Colors | 10-bit, 1.07 billion colors | ||
| Response Time | 18ms (Typ) | ||
| Brightness | 450 cd/m2 (Typ) | ||
| Contrast Ratio | 1400:1 (Typ) | ||
| Inputs | DVI-D x2, DisplayPort x1, 3G-SDI x1, VGA x1, RGBS/YPbPr x1, S-Video x1, Composite x1 | ||
| Outputs | 3G-SDI x1, RGBS / YPbPr x1, S-Video x1, Composite x1 |
Special specifications
| Screen Protection | Protectiv, Double AR Coating Glass | ||
|---|---|---|---|
| Water Proofing Level | IPX3 (front side) | ||
| Serial Remote | D-sub 9-pin, RS-232C x1 |

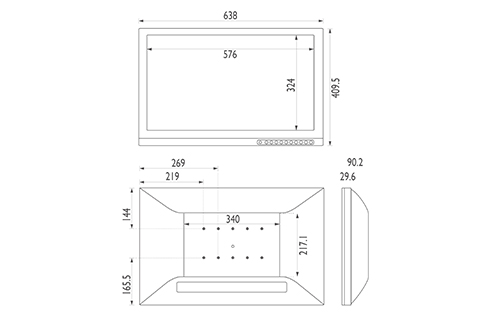

DIMENSIONS
